Surface textures refer to the microscopic and macroscopic features of a material’s surface, including roughness, waviness, and lay. These characteristics influence how a product interacts with its environment and other components. In manufacturing, controlling surface textures ensures optimal performance, quality, and cost-efficiency.
Industries rely on precise surface textures to meet specific needs. For example:
- Aerospace uses smoother surfaces on wings and turbine blades to reduce drag.
- Automotive components with controlled roughness minimize friction, improving efficiency.
- Medical implants with well-finished surfaces promote stability through osseointegration.
These examples highlight the critical role of surface textures in achieving functional and durable products.
Key Takeaways
- Surface textures are very important in manufacturing. They impact how products work, their quality, and their cost.
- Surface textures include roughness, waviness, and lay. These affect how a product works with its surroundings.
- Smooth surfaces lower friction and wear. This makes machines like engines and bearings work better.
- Measuring surface texture correctly is important. Tools like contact profilometers and optical methods check product quality.
- Better surface textures can save money. They make parts last longer and reduce costs over time.

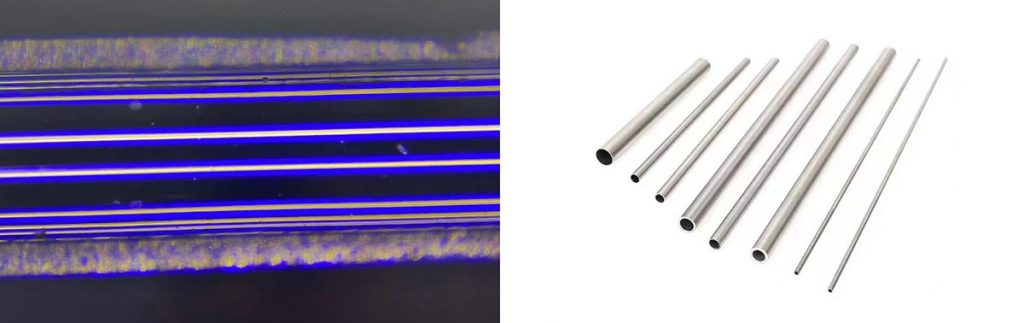

Understanding Surface Textures
Key Components of Surface Textures
Surface textures consist of three primary components: roughness, waviness, and lay. Each plays a distinct role in defining the surface’s overall characteristics and functionality.
Roughness
Roughness refers to the small, fine irregularities present on a surface. These irregularities often result from the machining or manufacturing process. Roughness significantly impacts how a component performs in mechanical systems. For example, smoother surfaces reduce friction, which is essential for bearings and gears. In contrast, rougher surfaces may increase friction, leading to inefficiencies. Additionally, smoother surfaces generally resist wear better, enhancing durability and fatigue strength in high-performance environments like aerospace and automotive industries.
Waviness
Waviness describes broader, widely spaced variations on a surface. These deviations are larger than roughness but do not qualify as flatness defects. Factors such as machine vibrations or thermal distortions during manufacturing often cause waviness. This component can influence sealing effectiveness and light reflection, making it critical in applications like optical devices and sealing systems.
Lay
Lay refers to the dominant pattern or orientation of the surface textures. The manufacturing process determines this pattern, which can vary in direction. Lay affects the functional properties of a part, such as its ability to minimize friction or enhance aesthetic appeal. For instance, a specific lay pattern might be chosen to improve the performance of sliding components.
| Term | Definition |
|---|---|
| Roughness | Refers to small irregularities in surface geometry, commonly specified and measured in surface finish. |
| Waviness | Describes broader, widely spaced surface finish variations, larger than roughness but not flatness defects. |
| Lay | The dominant pattern and orientation of the surface textures, influenced by the manufacturing process. |
Surface Textures vs. Surface Finish
Surface textures and surface finish are related but distinct concepts. Surface textures focus on measurable characteristics like roughness, waviness, and lay. In contrast, surface finish refers to the overall condition of a material’s surface, encompassing texture, flaws, and coatings. Differentiating these aspects is essential for quality control. For example, surface roughness directly impacts product lifespan and performance, while the lay of a surface can reduce friction in components like bearings. Waviness, on the other hand, affects sealing effectiveness and light reflection. Understanding these differences ensures manufacturers can specify and control surface characteristics to meet functional and aesthetic requirements.
Measuring Surface Textures
Methods for Measuring Surface Textures
Accurate measurement of surface textures is essential for ensuring product quality and performance. Various methods are used, each with unique advantages and limitations.
Contact Profilometers
Contact profilometers use a stylus that physically touches the surface to measure its texture. This method provides detailed and accurate results, especially for surface roughness measurement. It is less sensitive to surface contaminants like oil or dirt, making it reliable in industrial environments. However, the stylus can damage delicate surfaces, and the tip may wear out over time, requiring replacement. Despite these drawbacks, contact profilometers remain a cost-effective choice for many applications.
Non-contact Optical Methods
Non-contact optical methods rely on light to scan and measure surface textures without physical contact. These methods are faster and ideal for delicate or reflective surfaces. Optical profilometers, for instance, can generate both 2D and 3D data sets, offering a comprehensive view of the surface. However, their accuracy can be affected by the surface’s geometry, steep angles, or light orientation. These methods are particularly useful for transparent materials and large-area measurements.
Standards and Parameters
Standardized parameters help manufacturers evaluate and compare surface textures consistently. Two commonly used parameters are Ra and Rz.
Ra (Roughness Average)
Ra measures the average roughness of a surface by calculating the mean deviation of peaks and valleys from the centerline. It provides a general idea of the surface’s smoothness and is widely used due to its simplicity.
Rz (Maximum Height of Profile)
Rz focuses on the vertical distance between the highest peak and the lowest valley within a sampling length. It averages these distances over five sampling lengths, offering a more detailed analysis of surface irregularities.
| Parameter | Description | Measurement Methodology |
|---|---|---|
| Ra | Average roughness over the entire surface | Measures average length between peaks and valleys, neutralizing outliers |
| Rz | Vertical distance between highest peak and lowest valley | Measures vertical distance from highest peak to lowest valley within five sampling lengths and averages these distances |
ISO and ASME Standards
International standards ensure uniformity in surface texture measurements. ISO 4287 defines key terms and parameters, while ISO 25178 introduces areal measurement techniques. The newer ISO 21920 harmonizes these standards with ASME B46.1, which specifies surface texture components like roughness, waviness, and lay. These standards guide manufacturers in achieving consistent and reliable measurements.
Importance of Surface Textures in Manufacturing
Enhancing Product Performance
Friction and Wear
Surface textures play a critical role in managing friction and wear in mechanical components. Smoother surfaces reduce friction, which is essential for applications like bearings and gears. This reduction minimizes energy loss and enhances efficiency. Conversely, rougher surfaces increase friction, leading to higher wear rates and inefficiencies. Overly rough surfaces are prone to abrasive wear, while smoother surfaces improve wear resistance. In high-performance industries such as aerospace and automotive, where components endure repeated stress, optimizing surface roughness ensures reliability and longevity.
Lubrication and Sealing
Surface textures enhance lubrication and sealing in mechanical systems. A well-textured surface retains lubricants effectively, reducing friction and preventing overheating. In sealing applications, the waviness and roughness of a surface determine its ability to form tight seals. For example, engine gaskets rely on controlled surface textures to prevent leaks. By optimizing these textures, manufacturers improve the performance and durability of critical components.
Ensuring Quality Control
Consistency in Production
Surface textures ensure consistent quality in manufacturing processes. For instance, in automotive production, the texture of engine components affects friction and wear, which are vital for maintaining performance standards. Uneven textures can lead to defects in coatings, such as peeling or bubbling, and impact print quality by causing uneven ink transfer. Regular inspections and precise control of surface textures help manufacturers maintain uniformity across products.
Reducing Defects
Controlling surface textures minimizes common manufacturing defects. Adjusting feed rates reduces tool marks, while shallow cuts lower cutting forces, resulting in smoother finishes. Using sharper tools and vibration-damping materials further enhances surface quality. Advanced CAM software optimizes toolpaths, reducing abrupt changes that could compromise the finish. These practices collectively improve product quality and reduce the need for rework.
Managing Costs
Material Efficiency
Optimizing surface textures contributes to material efficiency. In aerospace, smoother surfaces on wings and turbine blades reduce aerodynamic drag, improving fuel efficiency. Similarly, in automotive manufacturing, controlling the roughness of engine components like pistons and bearings reduces friction, enhancing engine performance. These improvements lower energy consumption and operational costs.
Maintenance and Longevity
Well-finished surfaces extend the lifespan of components, reducing maintenance costs. For example, smoother surfaces resist wear better, requiring fewer replacements. In medical devices, implants with optimized surface textures promote osseointegration, ensuring stability and longevity. By prioritizing surface finishing, manufacturers enhance product durability and reduce long-term expenses.
Conclusion
Understanding and controlling surface textures is essential for achieving manufacturing excellence. Proper management of surface roughness enhances product performance, durability, and quality. For instance, smoother finishes on aircraft components reduce drag, while honed piston rings in automotive engines improve oil retention and minimize wear. In biomedical applications, optimized textures on implants promote cell adhesion, ensuring safety and reliability.
Precise measurement techniques and adherence to standards enable manufacturers to meet stringent quality requirements. These practices improve product functionality and longevity, whether in cutting tools, food processing equipment, or consumer electronics. By prioritizing surface finishing, manufacturers can achieve superior results across industries.
